An In-depth Look at the Advantages of Tube-Based Suppression Systems
Fire safety is an imperative concern in virtually all industries, from manufacturing to data centers and even regular applications, such as vehicles and kitchens. Furthermore, fire protection is a crucial requirement in every environment where people, valuable assets, and equipment are present. Standard fire security methods often rely on manual operation or external detection systems, which take a long time to respond in critical situations. In panel tube-based suppression system, modern technology has been introduced as a smarter, more effective solution in such situations.
Moreover, this system offers fast, actionable, reliable performance and easy-to-install methods. Thus, it makes it perfect for many external applications. A tube-based fire suppression system works without sensors, human intervention, or electricity. Likewise, it responds instantly when exposed to flames or high heat. It helps stop the fire before it spreads excessively. Hence, it makes it an effective and reliable option for automatic fire response systems across industries. Nevertheless, in this comprehensive guide, we will discuss the fundamental benefits of an automatic fire suppression system. Let’s get started!
A Quick Overview of Tube-Based Suppression System

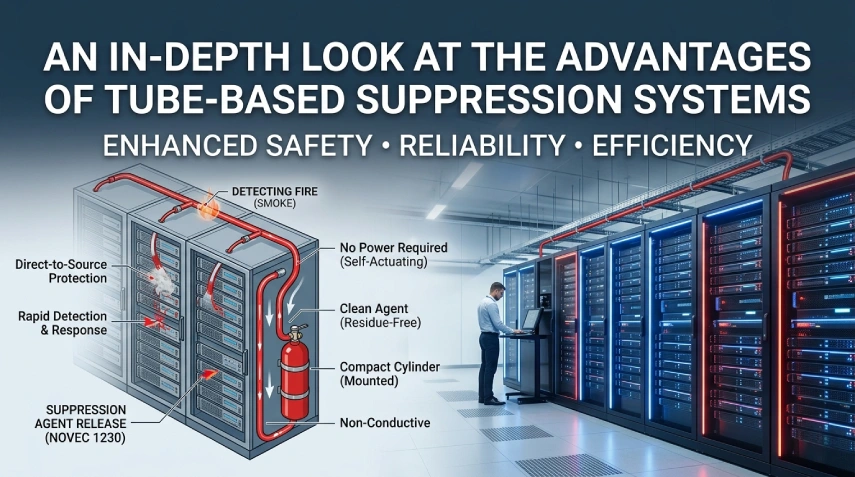

A tube-based fire suppression system is an automatic, localized, and self-contained fire security solution particularly designed for confined, small, and high-risk areas, such as vehicle engines, electrical cabinets, and CNC machines. Furthermore, it uses a pressurized, heat-sensitive polymer tube that serves as both the nozzle and a linear fire detector for delivering the extinguishing agent.
When a fire begins, the heat causes the tube to break at the hottest point. The resulting pressure drop immediately releases a clean agent (such as Novec 1230 or FM-200) or CO2 directly onto the fire, suppressing it in seconds.
Working Functionality of the Tube-Based Suppression System
In panel tube-based suppression system, it functions by linking the heat-sensitive polymer tubes to the container holding the extinguishing agent. The tubes are fixed at one end to the container holding the agent, while the other end is placed within the micro-environment to cover strategic areas with a high probability of ignition.
When a fire breaks out within the micro-environment, the tubes are heated by rising temperatures. Once the tubes are heated to 150-180 °C, they burst into small nozzles at the point of maximum temperature. Consequently, this bursting opens the pneumatics, which opens the extinguisher valve to direct the agent towards the flames for instant extinguishing.
The tubes’ flexibility enables them to fit perfectly within the micro environment, offering the greatest scope for suppressing fires in the space. The tube-based suppression systems are best used within an enclosed micro-environment where there is an electrical fire hazard that might not be noticed and could continue to burn.
Benefits of the Tube-Based Suppression System
Fire safety is no longer a choice. It has become a necessity. In panel tube-based suppression system, fire extinguishers are just not feasible for electrical panels, servers, cars, or industrial equipment. With its simple mechanism, technology, and ease of installation, this suppression system has proven quite useful.
1. Automatic Fire Detection and Suppression
It can be considered completely automatic. It indicates that the fire suppression system has a special tube that bursts upon detecting high temperatures, releasing the fire suppression agent directly into the source of the fire. Also, it means no human intervention is required to activate the fire suppression system. This fire suppression system can be activated silently, even without the owner’s presence.
2. No Electricity Required
The second advantage in panel tube-based suppression system is that it does not require electricity to operate. It implies that the fire suppression system is fully functional, even without electricity. Its feature can be quite useful, especially for electrical panels, as the risk of fire is high due to the likelihood of electrical faults.
3. Easy Installation Process
The tube-based suppression system is quite simple to install. It signifies that businesses do not face much difficulty while installing the fire suppression system, as the tube can be easily installed in the fire hazard zone. Moreover, it has made the tube-based suppression system quite popular, as businesses do not face much inconvenience during installation.
4. Fast Response Time
The earlier a fire is detected and controlled, the less damage it will cause. The response time for this system is very fast, as it reacts to direct contact with a flame or high temperatures. As soon as the temperature reaches a critical point, the tube ruptures, releasing the agent immediately. It reduces the probability of a fire spreading.
5. Cost-Effective Solution
In panel tube-based suppression system, the fire detection and suppression system is a relatively affordable solution compared with traditional systems. There is no need for additional detection or control systems, which reduces costs. The system’s maintenance costs are also very low, making it a viable solution for small businesses.
6. Minimal Maintenance Required
All systems require some form of maintenance, and although it is a requirement for the fire detection and suppression system, it is minimal. The design is simple, and since it has few parts, the chances of it breaking down are also low. Additionally, it saves time and maintenance costs, making it a viable solution for businesses.
7. Targeted Fire Suppression Solution
With a high-quality automatic fire suppression system, it easily suppresses fires at the source. That is why the agent is discharged only when heat is detected, and only at that specific location. Therefore, it reduces the risk of unnecessary discharges and protects other equipment.
8. Environment-Friendly Options Available
The majority of fire detection and suppression systems that use tubes today use clean agents that do not damage the ozone layer. The agents used in these systems are residue-free, which reduces the hassle of cleaning up after a fire has been discharged.
9. Compact and Space-Saving Design
Space is a constraint in every case, whether it is a vehicle, a CNC machine, or a control panel. Moreover, tube-type fire suppression systems are compact and lightweight. They are adjustable as well, given their compact nature. You don’t need to worry about the tension of a bulky cylinder or heavy piping, all while getting a fire suppression system.
Let’s Conclude Here!
We hope this blog has provided you with all precise details regarding the fundamental advantages in panel tube-based suppression system. However, if you are looking for a reliable manufacturer of suppression systems, look no further than Spectra Fire. We offer a complete range of fire suppression systems that will safeguard you and your space with potential fire hazards. So, do not wait for any longer. Connect with us today and purchase the best fire suppression systems without spending a hefty amount on it!
Frequently Asked Questions
Yes, the system is completely automatic. No sensors, wiring, or switches are needed. Once the temperature reaches 150-180 degrees Celsius, the tube bursts, releasing the agent to the fire source.
It is a perfect system for small areas of high fire risk. This can include electrical panels, server rooms, vehicle engine compartments, CNC machines, and battery banks. This system is highly effective in small spaces and high-fire-risk areas.
Not at all. The system is quite simple to install. Tubes are to be installed strategically in the fire-prone area and connected to the cylinder. This way, businesses do not have to worry about complex installations.
The system requires minimal maintenance. Since there are fewer parts to the system, the chances of failure are also low. Regular inspections can ensure the system is ready to use at all times.
Yes. Most of the systems use clean agents such as FM-200 and Novec. These agents leave no residue and do not damage the ozone layer. This way, there is no hassle of cleaning up after fire control.
